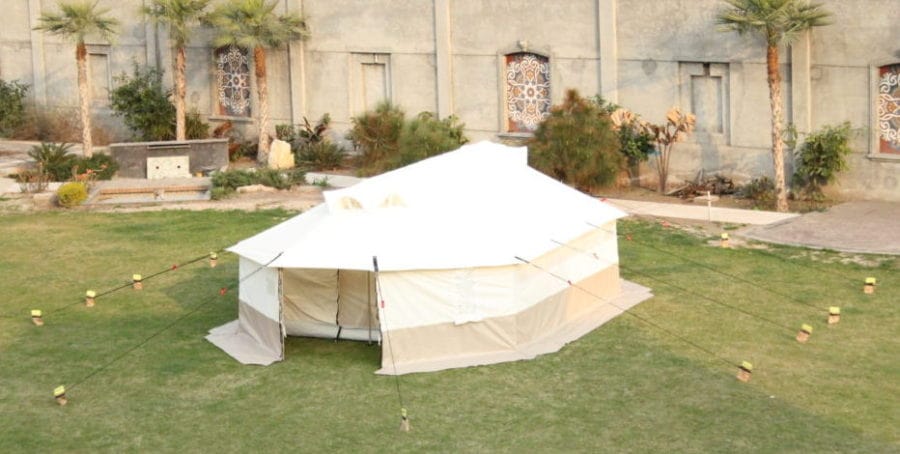

Viva™ Family Tent DFID / Save the Children Standard Key Features Fire retardant, waterproof, rotproof & UV-stabilised16m2 main floor area plus two 3.5m2 vestibules for a total area of 23 m2, double-fly with ground sheetComplies to recommended minimum living area in hot & temperate climates (3.2m2 per person), providing extra space for cold climatesSuitable for families of 5 people Dimensions Total living area23 m²Main floor16 m²Two vestibule areas3.5 m² x 2 = 7 m²Centre height2.20 mWidth4.00 mRidge length4.00 mSide wall height1.25 mCentre base length6.60 mTotal size1.35 m x 1.40 mDoor flaps1.45 m x 1.60 mUpper part1.45 m x 0.90 m (PC)Lower part1.45 m x 0.70 m (PVC) Materials Fire retardancyPass CPAI section 5 and 6 with maximum 10s after flame average and maximum 30s after flame per test piece; Ageing under ISO 4892-2, type A, 360 hours.Outer tentRoof, wall and canopy: 380 gsm without FR, Polycotton, natural whiteInner tent380 gsm Polycotton, natural whiteInner liner and partition160 gsm Polycotton, except fire retardant. Yellow, beige, cream and sandMud flaps500 gsm - 610 gsm, PVC coated Polyester, in light colourGround sheet180 gsm (HDPE), in light colour. Sewn in bathtub Downloads Specifications sheetTent assembly manual Videos Key features videoTent assembly videoTent production video
