Winterization Kit for Viva™ Family Tents

UNHCR/ICRC/IFRC Standard

Key Features
- Kit includes 5 insulated sleeping mats, 1 winterisation liner, 1 partition, 1 heat-resistant floor protection (for stove) & 1 heat-resistant chimney sleeve
- All materials & additives are non-toxic, free from asbestos and other toxic products according to the EC regulations
- Individually packed in a strong, waterproof plastic bag made of standard plastic tarpaulin.
- Specially designed for Viva™ Family Tents
- Designed to protect families against cold from the ground or from any other floors during cold weather
- Designed to fit together to the liner’s attachment points and heater flue pipe protection. All materials are fully fire retardant.
- Can be used in any tent to protect the ground sheet when using a stove or heater.
- Can be used only with tents originally equipped with standard chimney patch and flap as described in our Viva™ Family Tent or in Viva™ Family Framed Tent specifications
- Specially designed for Viva™ Family Tents
Dimensions
Materials

Floor mat
1st layer, plastic floor mat: Tight woven twill structure, double thickness, virgin PP multifilament 500 deniers inwarp, minimum 1,000 tubes/meter, 500 gsm minimum weight 2nd layer, alumnised canvas: Synthetic canvas with durable aluminium coating 3rd layer, fleece blanket: Refer to our Medium Thermal Synthetic Blanket specifications
Inner liner
130 gsm ±10% in finished state except fire retardant weight Tensile strength: ISO 13934-1, warp and weft 300 N minimum Tear strength: ISO 9073-4, warp and weft 20 N minimum Colours: Available in yellow, beige, cream or sand
Floor protection
Fibrocement plates, 100% fire proof and rigid material
Heat resistant sleeve
100% fireproof, tearproof, waterproof soft canvas Tear resistance under ISO 9073-4: minimum 40 N Waterproof under ISO 811: minimum 20 hpa (20 cm)

Downloads

Specifications sheet

Videos

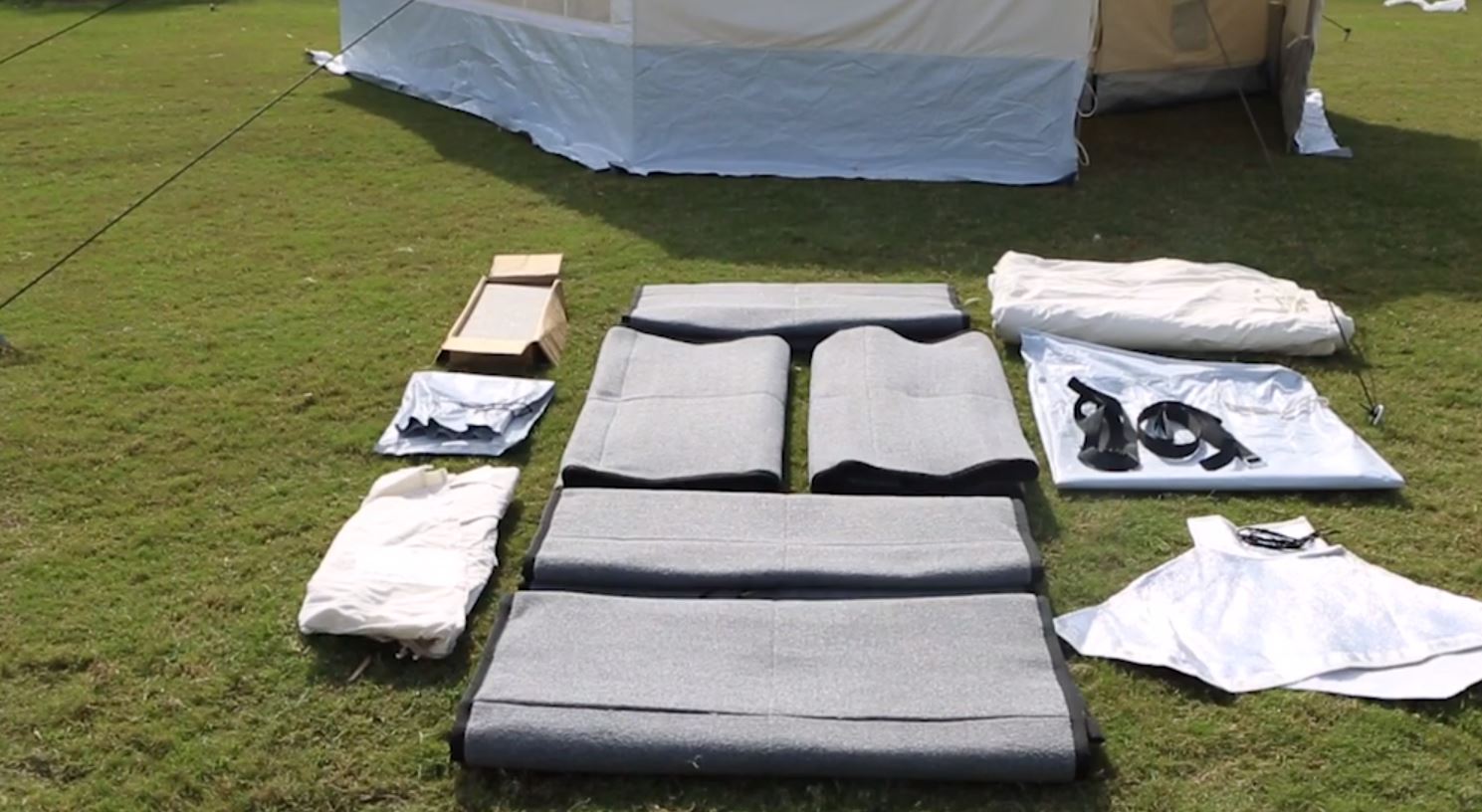

Winterization kit assembly video
